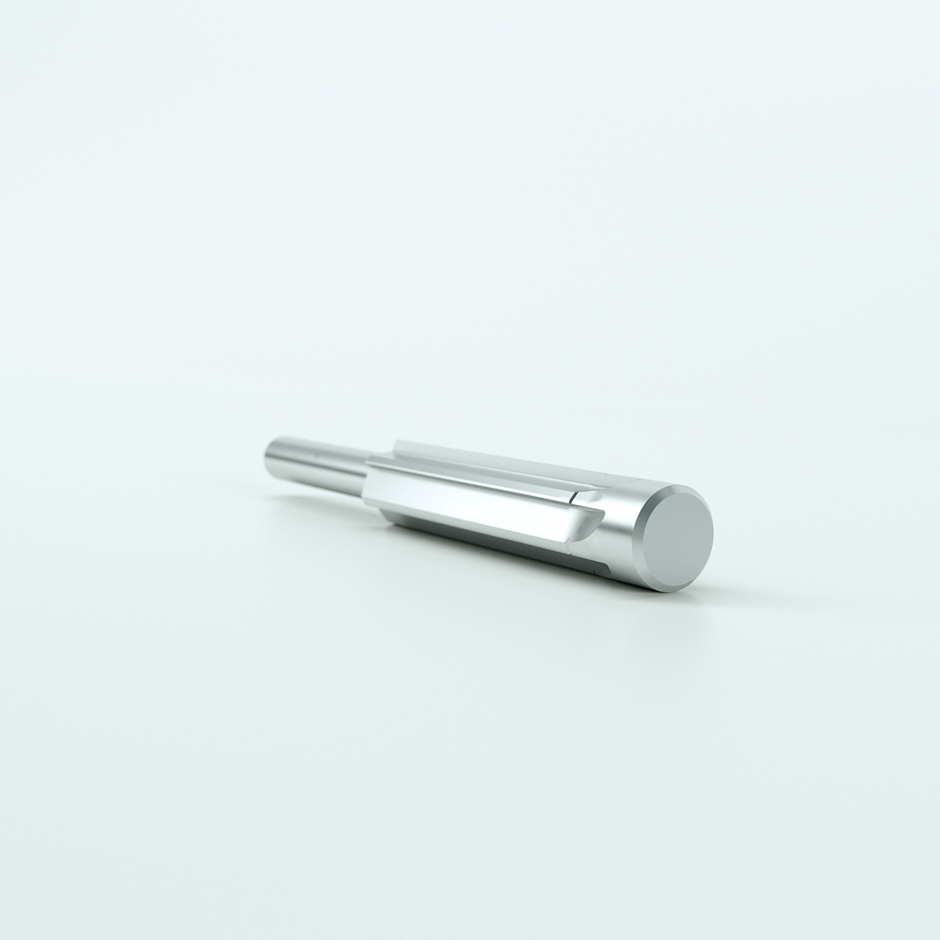

NWP236A Straight Shank Taperlead Reamer Series,NWP236A Taperlead Straight Shank Reamer Series,Designed for pneumatic pistol drills and produce a superior surface finish and hole concentricity to exacting hole dimensions.
| Product Code | NWP 236 Reamer |
| Application | Reaming |
| Material Suitability | Aluminium |
| Product Code Standard | Ref No | ISS No | Hole Size | A | B | C | D | E |
|---|---|---|---|---|---|---|---|---|
| NWP 236A Ref 1s | 1s | 8s | 5/16"s | 0.3125s | 4 1/2"s | 6.0"s | 0.2813s | 1/2"s |
| NWP 236A Ref 2s | 2s | 8s | 1/4"s | 0.2500s | 2 1/2"s | 8 1/2"s | 0.2188s | 1/2"s |
| NWP 236A Ref 3s | 3s | 8s | 1/4"s | 0.2500s | 2 1/2"s | 4 1/2"s | 0.2188s | 1/2"s |
| NWP 236A Ref 4s | 4s | 8s | 5/16"s | 0.3125s | 4.0"s | 10.0"s | 0.2813s | 1/2"s |
| NWP 236A Ref 5s | 5s | 8s | 3/8"s | 0.3750s | 4.0"s | 5 1/2"s | 0.3438s | 1/2"s |
| NWP 236A Ref 6s | 6s | 8s | 5/16" +0.010"s | 0.3225s | 4 1/2"s | 6.0"s | 0.2913s | 1/2"s |
| NWP 236A Ref 7s | 7s | 8s | 5/16" +0.020"s | 0.3325s | 4 1/2"s | 6.0"s | 0.3013s | 1/2"s |
| NWP 236A Ref 8s | 8s | 8s | 1/4" +0.010"s | 0.2600s | 2. 1/2"s | 8 1/2"s | 0.2288s | 1/2"s |
| NWP 236A Ref 9s | 9s | 8s | 1/4" +0.020"s | 0.2700s | 2 1/2"s | 8 1/2"s | 0.2388s | 1/2"s |
| NWP 236A Ref 10s | 10s | 8s | 1/4" +0.010"s | 0.2600s | 2 1/2"s | 4 1/2"s | 0.2288s | 1/2"s |
Please fill out your custom requirements if they are not listed above , one of our team will then get in touch with you.
